The Magic Metal Box: How Your HVAC Actually Works (And Why the Filter is the MVP)

You walk up to a piece of plastic on your wall, press a button, and magically, your house becomes the perfect temperature. We treat our heating and cooling systems like pure sorcery. But there is no magic involved. It is just basic thermodynamics and a massive amount of moving air.

Understanding how that giant metal box in your basement or attic actually works is the first step to not destroying it. And once you see the mechanics in action, you will finally understand why the air filter is the most important component in your entire home.

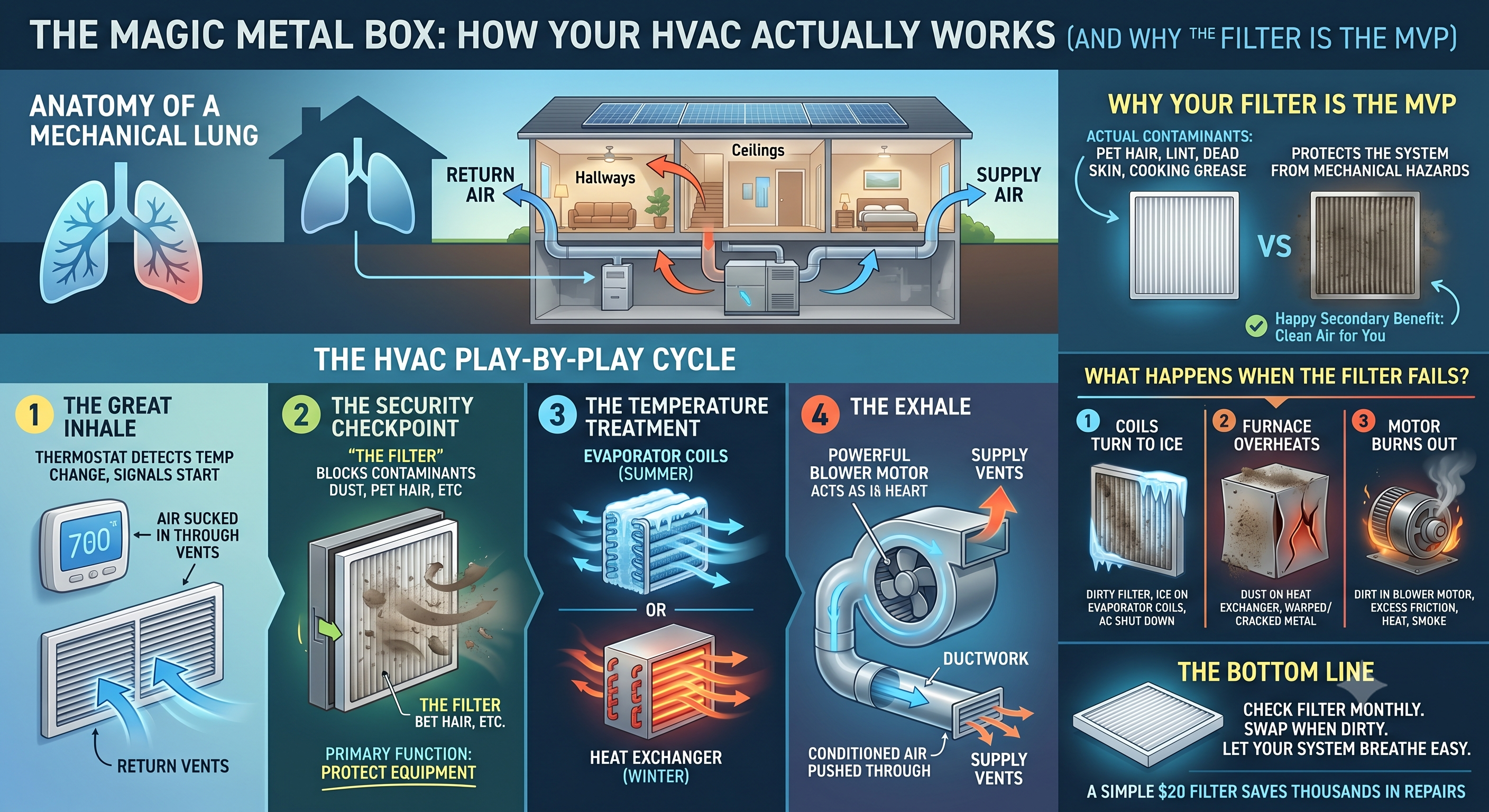

Anatomy of a Mechanical Lung

Your HVAC system is not constantly pulling fresh air from outside to cool you down. It operates on a closed loop. It is essentially a giant mechanical lung that breathes the exact same air in and out of your rooms all day long.

Here is the play by play of how the cycle works.

Step 1: The Great Inhale

When the thermostat realizes the house is too hot or too cold, it sends a signal to start the cycle. The system begins sucking in the ambient air from your living space through the return vents. These are the large grates usually found in your hallways, stairwells, or ceilings.

Step 2: The Security Checkpoint

Before that room air can enter the expensive machinery, it has to pass through the air filter. This is the only physical barrier between the dust floating in your house and the delicate internal components of your unit.

Step 3: The Temperature Treatment

Once the air passes the filter, it hits the main event. If it is winter, the air is pushed over a blazing hot heat exchanger. If it is summer, it is blown over ice cold evaporator coils. The passing air absorbs the heat or the chill.

Step 4: The Exhale

Finally, the powerful blower motor acts as the heart of the system. It forcefully pushes this newly conditioned air through the maze of metal ductwork hidden in your walls and out through the supply vents in each room, lowering or raising the temperature of the house.

The Dirty Truth About Your Air Filter

Here is the biggest misconception in home maintenance. You probably think the air filter was designed to keep your lungs clean and reduce your allergies.

That is just a happy secondary benefit.

The air filter was actually invented to protect the HVAC equipment from you. Your house is full of mechanical hazards. Pet hair, laundry lint, dead skin cells, and cooking grease are constantly floating in the air. If those particles were allowed to freely enter the system, it would be a disaster.

What Happens When the Filter Fails?

If you run your system without a filter, or with a filter so clogged that air is forced to bypass it, you are actively killing your equipment.

• The Coils Turn to Ice: In the summer, the evaporator coils get incredibly cold. They rely on warm, filtered air blowing over them to keep from freezing solid. If dirt coats those wet coils, it acts like an insulating blanket. The condensation freezes into a solid block of ice, and your AC shuts down entirely.

• The Furnace Overheats: In the winter, dust settling on a heat exchanger traps heat inside the unit where it does not belong. This can cause the metal to warp and crack, which is a fast track to a total system replacement.

• The Motor Burns Out: The blower motor is a precision instrument. When it gets coated in sticky dust, friction increases. The motor has to pull more electricity to spin, generating excess heat until it literally cooks itself to death.

The Bottom Line

Your HVAC system is a brilliant, hardworking machine that keeps you comfortable year round. But it is entirely dependent on that beautiful pleated filter to keep working when you need it most.

Now that you know how the magic trick works, do not let a simple layer of dust ruin the show. Check your filter every month, swap it out when it gets dirty, and let your system breathe easy. With FiltersDelivered.com it is easier than ever to order the sizes and MERV ratings you need, with fast free shipping and amazing customer service, we are ready to service your filter needs.
